Agilent 1100/1200 HPLC System: Diagnostic Functions

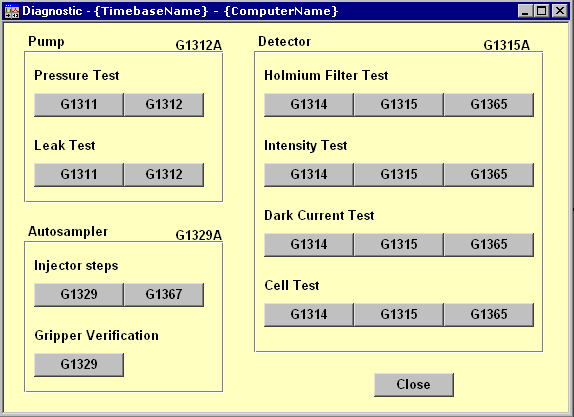

The HP1100.pan and Agilent_1200.pan control panels support several diagnostic functions for the Agilent 1100 and 1200 HPLC systems. Click Diagnostic Functions to open the diagnostic panel. To perform a test, click the related button:

Chromeleon supports the tests listed below.

Pump:

 Pressure Test

 Leak Test

Note:

The pump diagnostics tests are not available for the Series 1200 binary pump type G1312B SL.

Autosampler:

 Injector Steps

 Gripper Verification

Detector:

 Holmium Filter Test

 Intensity Test

 Dark Current Test

 Cell Test
