The Chromeleon Xpress User Interface
Expanding, Splitting, and Resizing Panels

If multiple systems are connected to Chromeleon Xpress, you can switch between two display options:

• Click to expand the selected panel tabset and hide the other panels.

• Click to view panel tabsets for each system simultaneously (split-window view).

In the split-window view, you can also change the width of the panels.

To do this, point to the vertical bar between two panels and drag left or right. Increasing the width of one panel decreases the widths of the other panels.

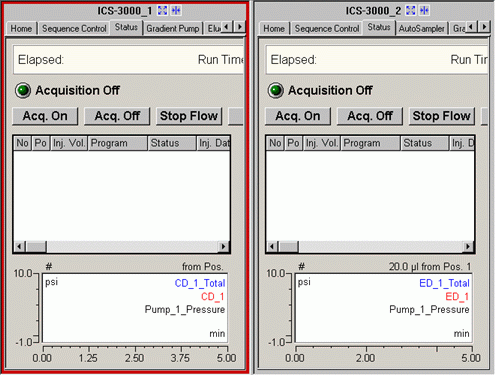

For example, the Chromeleon Xpress window below is comprised of two panel tabsets.

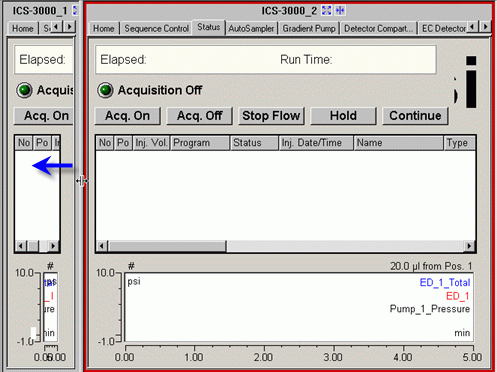

Drag the vertical bar to the left to increase the width of the ICS-3000_2 panel tabset.

To return to the default split-window view, click .

Also, refer to  The Chromeleon Xpress User Interface (Overview).
