Installing and Controlling Third-Party Devices
Waters 600E Pump

Device Type:

HPLC pump

Device Driver:

600E Pump

Restrictions:

  • No support for PowerLine Controller

  • No support for Rheodyne 7725i Injector

  • No optional temperature control

  • No optional inject valve support

  • The Program Wizard provides only standard pump templates for creating PGM files.

  • This Waters device cannot connect to a NI-488.2 driver version 15.0 or later. You must use a NI-488.2 driver with software version ≤ v.14.0.



What is required?

License:

Timebase Class 2

Connection:

GPIB Bus cable (Dionex part no.: 5919.0013).

The device driver communicates with the HPLC system via a GPIB (IEEE) connection. This requires that a GPIB interface card or GPIB/USB adapter be installed in the Chromeleon server PC and that the PC be connected with the HPLC system via a GPIB IEEE 488 Bus Cable. For more information refer to  GPIB IEEE 488 Bus Cable.

Hardware Requirements:

GPIB interface card or GPIB/USB adapter

Software Requirements:

When a GPIB/IEEE connection is used, the corresponding VISA library (≤ version 14.0) must be installed.

Tip:

The Libraries Suite is usually shipped with the GPIB interface; upgrades for the Agilent interfaces can be downloaded free of charge from the Agilent website).

Firmware Requirements:

The driver was tested for pumps with 100 µl pump head, firmware version 4.2.



Hardware Installation

Device Connection:

 GPIB IEEE 488 Bus Cable (Dionex part no. 5919.0013).

 Caution:

When connecting several devices or systems via GPIB, connect them in series (not in a star structure) and turn all devices on. Otherwise, communication problems may occur.

Device Settings:

To enable communication with Chromeleon, the controller must be configured as Gradient Controller.

To configure the Gradient Controller proceed as follows:

  1. Press the Setup button at the front keypad to display the PUMP SETUP screen:

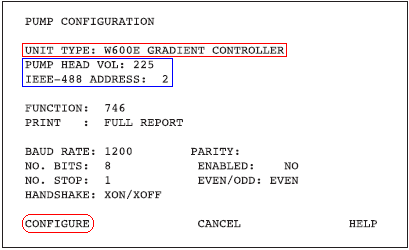

  1. Press the PUMP CONFIG screen key to display the PUMP CONFIGURATION screen:

  2. Check the UNIT TYPE field. If the TYPE field contains:

  3. W600E Gradient Controller - no changes required, press CANCEL to quit the Pump Configuration screen.

  4. W600E PowerLine Controller - proceed to step 4.

  1. Use the Up/Down keys to move the cursor to the UNIT TYPE field.

  2. Type 0 to select the Gradient Controller configuration and press CONFIGURE to save the change. The controller reboots and returns to the Powerup screen.

  Tip:

You may also consult the PUMP CONFIGURATION screen to view the pump head volume and IEEE-488 address. These data are required when you configure the pump driver in the Server Configuration .

Restrictions:

Thermo Fisher Scientific recommends not using Waters devices and Agilent HP 1100 Systems on the same GPIB card.



Software Installation

For details about how to add timebases and device drivers to the Server Configuration, refer to Adding, Configuring or Deleting Devices. When you add a driver to the timebase, the configuration dialog or wizard opens automatically. For information about the settings, click the Help button on a page or press F1.

Further Information

For detailed installation instructions, refer to the operating instructions for the pump.

For information about the supported GPIB interfaces, refer to Connecting Third-Party Devices via GPIB.

For troubleshooting information, refer to  GPIB-Connected Devices: Troubleshooting
