Signing Sequences Electronically
Individual Steps of the Electronic Signature

The first step of an  Electronic Signature is the Submit process. Click a Sequence that has not yet been signed, and then select Submit Results as described in  Signing Sequences Electronically.

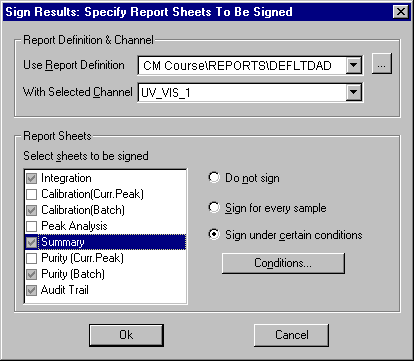

Select the Report Definition file (RDF) to be used for displaying the sequence, select the channel for which you want to show the results, and select the report sheets to be signed.

 Tip:

The settings saved in the report definition file (RDF) are used as default for the worksheets to be signed and for the respective conditions. For more information, refer to How to: Preparing the Printout  Specifying the Pages to be Printed in the User Help section.

After you have selected the report definition file, the system writes the results to an SOR (Signed Off Results) file. You can monitor the procedure on the screen via a status bar that indicates the percentage of results already copied to the file. Simultaneously, the pages of the report for the individual samples are frozen.

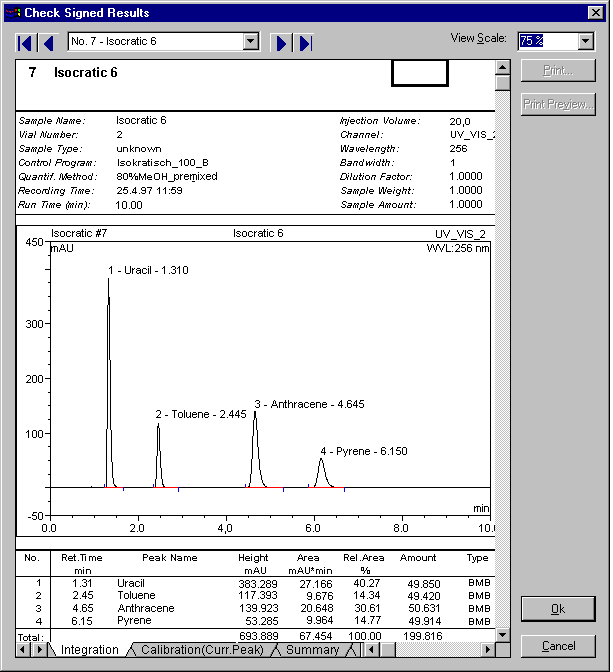

Afterward, the Check Signed Results dialog box appears:

This dialog box allows you to check the report to be signed. Use the arrow keys to toggle between different sequence samples. For each sample, the tab pages for the selected report sheets are displayed. Click OK when you have finished checking the report. The Submit Signature dialog box appears.

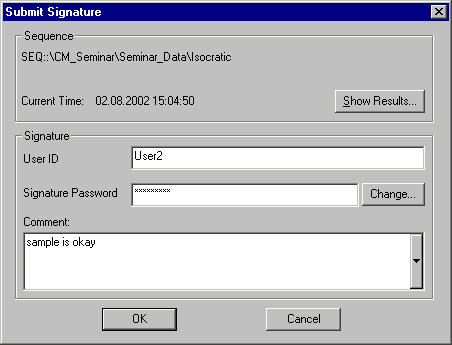

To sign the SOR file, enter your User ID and the signature password:

In the Comment field, you must enter additional information, such as any critical or doubtful points you noticed while creating the report.

When a sequence is open, the SOR file is displayed under the other sequence files in the top right Browser section. Double-click to open the SOR file:

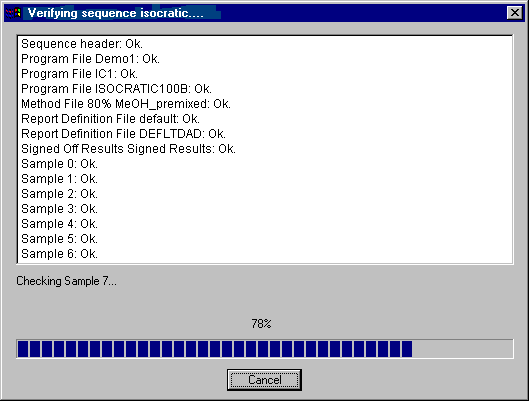

To review sequences that have been signed and submitted, select Review Results. You can monitor the process on the screen. The files and samples of the sequence that have already been reviewed are listed, as well as the result of the review.

For the file or sample under review, the status bar indicates the percentage of completion:

(Reviewing the results is much faster than submitting the signature. Thus, the above dialog box may be visible only for a few seconds, especially with short sequences.) To approve a sequence, proceed in the same way.

Also, refer to  Checking the Signature Status and Undo Signature.
