Chromeleon Xpress: Ensuring System Wellness
Calibrating Devices

Calibration and diagnostic commands for IC devices are available from Chromeleon System Wellness control panels.

Follow these basic instructions to calibrate a device:

1. Click the tab for the instrument on which the System Wellness function is to be performed. For example, click Cond. Detector 1 if you are going to calibrate a CD cell.

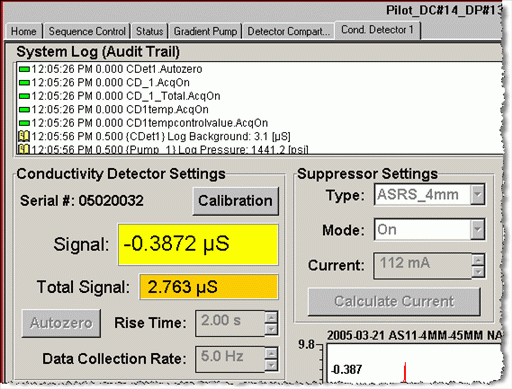

2. On the instrument control panel, click Calibration.

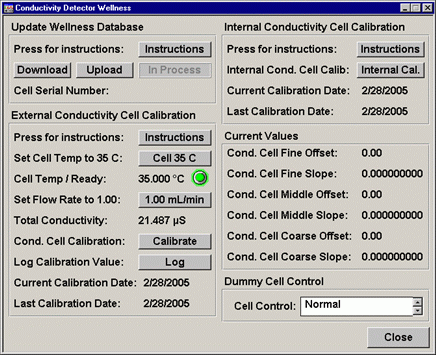

   The Wellness panel opens. The Wellness panel for a CD cell is shown below.

3. If desired, click Instructions for an overview of the calibration procedure.

4. To open the Help topic for the calibration procedure, first open the following topic, Ensuring System Wellness  Performing Device Calibrations. Then, select the procedure to be performed from the list provided.

5. Follow the Help instructions to complete the calibration.
