Displaying Peak Information in a Separate Area

Chromeleon supports displaying the peak information in a separate area above the actual chromatogram:

• Double-click the chromatogram to open the Chromatogram Decoration dialog box.

• On the Peak Calipers tab page, select Show peak calipers to display the peak information.

In addition, you can also display the following information:

• The name of the current QNT method: Show QNT info.

• The lines indicating the width of the retention time Window of the associated substance: Show all caliper drop lines.

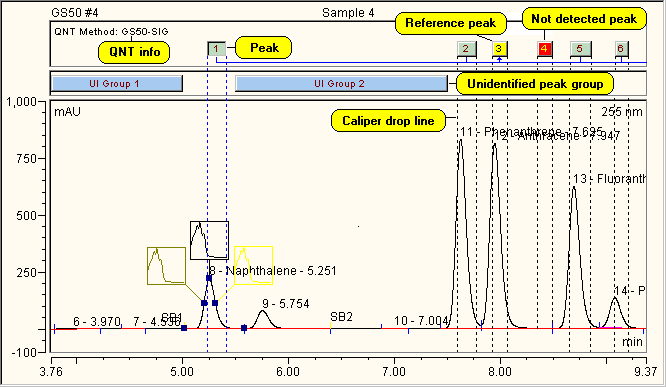

The chromatogram looks as follows:

In addition, you can move the retention time window graphically. For more information, refer to  Moving a Retention Window Graphically.
