Diagnostics (UltiMate 3000 Series)
Disconnecting the Pump Block from Flow (HPG-3x00RS/SD)

If you want to run the general or detailed leak test for a HPG-3x00RS or HPG-3x00SD pump, disconnect the unused pump block from the flow before starting the test.

Except for a PEEK blind nut, which is included in the pump accessories kit, the Diagnostics kit for UltiMate 3000 RS/SD Pumps (Dionex part no. 6040.3099) includes everything that is needed to disconnect a pump block.

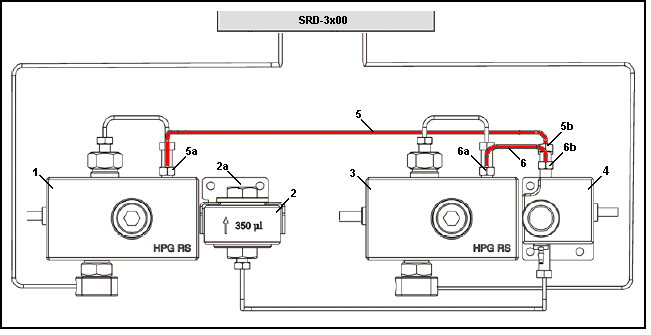

The image below illustrates this procedure for the HPG-3200RS pumps:

1

Left pump head

5a

Outlet of the left pump head

2

Mixer

5b

Purge unit inlet (left pump head)

2a

Mixer outlet

6

Capillary from right pump head to purge unit

3

Right pump head

6a

Outlet of the right pump head

4

Purge unit

6b

Purge unit inlet (right pump head)

5

Capillary from left pump head to purge unit







To disconnect the pump block

To test the right pump block (i.e., channels B and D for a HPG-3400RS/SD or channel B for a HPG-3200RS/SD), remove the capillary (5) that connects the left pump head (1) with the purge unit (4):

  1. Disconnect the capillary at the outlet of the left pump head (5a) and close the outlet with a blind nut (PEEK).

  2. Disconnect the capillary at the inlet of the purge unit (5b) and close the inlet with a blind nut.

  3. Close the mixer outlet (2a) with a blind nut.

  4. After completion of the test, reconnect the capillary and remove the blind nut from the mixer outlet.

Tip:

Leave the blind nut in the mixer outlet, if you proceed with testing the second pump block.



To test the left pump block (i.e., channels A and C for a HPG-3400RS/SD or channel A for a HPG-3200RS/SD), remove the capillary (6) that connects the right pump head (3) with the purge unit (4):

  1. Disconnect the capillary at the outlet of the right pump head (6a) and close the outlet with a blind nut (PEEK).

  2. Disconnect the capillary at the inlet of the purge unit (6b) and close the inlet with a blind nut.

  3. Close the mixer outlet (2a) with a blind nut.

  4. After completion of the test, reconnect the capillary and remove the blind nut from the mixer outlet.
