Simulating Chromatograms
Viewing the Resolution Response Surface

The Resolution Response Surface is a plot of the lowest resolution values found for the Virtual Chromatogram at each possible eluent condition. Specific features of the plot vary, depending on which resolution criterion is selected (see How to …:  Selecting a Resolution Criterion) and on whether the eluent is a single- or dual-species type.

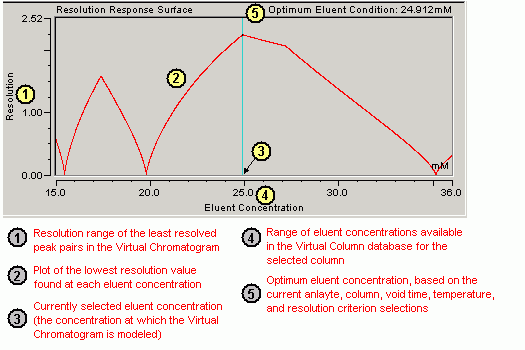

Single-Species Eluents

When a single-species eluent is used, the Resolution Response Surface is represented by a line plot. In this example, the Minimum Resolution criterion is selected.

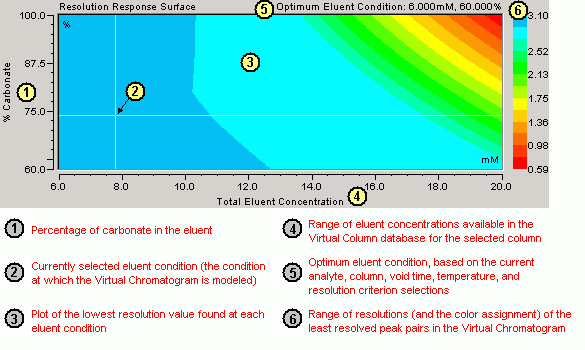

Dual-Species Eluents

When a dual-species eluent is used, the Resolution Response Surface is represented by a contour plot. In this example, the Minimum Resolution criterion is selected.
